Restricted Access Screw Pile Installation in Ealing

  • The client was developing a site in the back garden of an existing house in Ealing

  • The site had only the side pedestrian gate for access 800mm wide

  • Existing trees meant that there was restrictions on heavy equipment and excavation within the root protection areas

screw pile foundation
completed project
  • 1

    Following an onsite survey we proposed to utilise a helical pile foundation with reinforced concrete capping beam and to balance the proposed surrounding landscaped ground levels slightly.

  • 2

    The result was a foundation system which required minimal excavation and could be install quickly and efficiently (within 4 weeks).

  • 3

    In conjunction with the adjusted landscape levels it meant no material had to be transported from site.

  • 4

    Only the screw piles went down into the root areas resulting in minimal impact and allowing construction over root protection zones.

  • 5

    The ground beams were manufactured offsite which meant they could be installed quickly and efficiently with no cutting on site resulting in less noise and disruption to the local residents.

  • 6

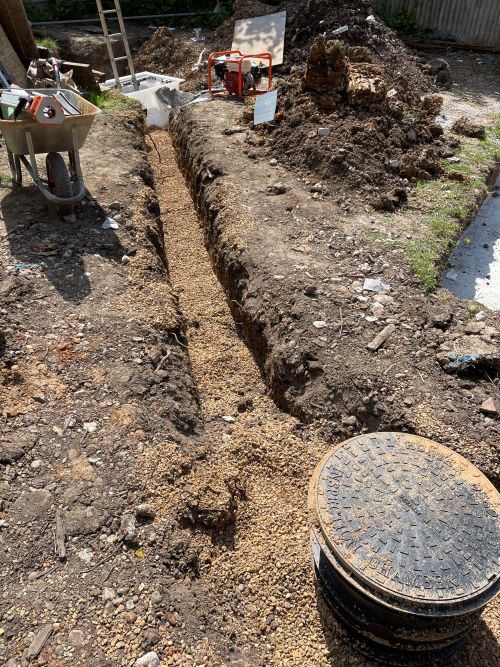

    We also installed the cess tank and sustainable urban drainage systems.
